PE& TPE Plastic Gloves Making Machine

PE& TPE Plastic Gloves Making Machine
PE& TPE Plastic Gloves Making Machine
PE& TPE Plastic Gloves Making Machine
PE& TPE Plastic Gloves Making Machine

Sample:

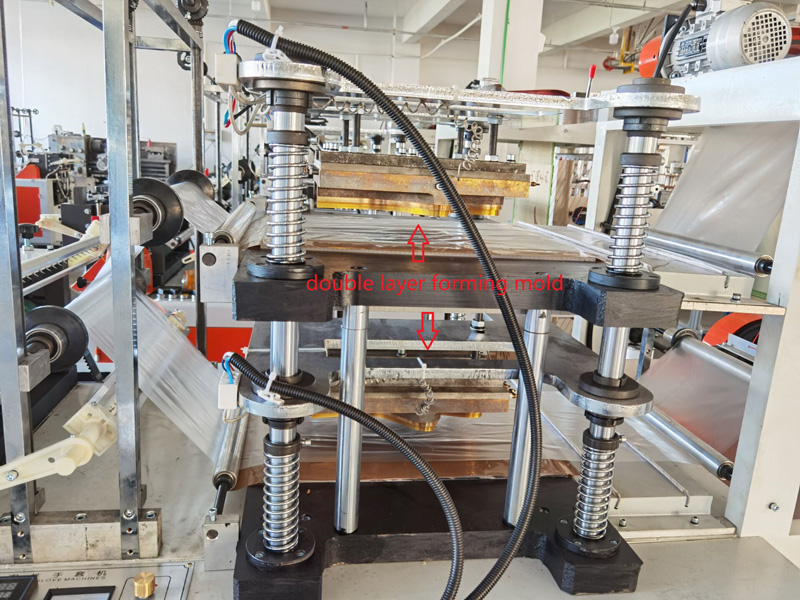

ABOVE PE GLOVES CAN MAKING IN OUR MACHINES ,DIFFERENT SIZE USE DIFFERENT MOLD

ABOVE TPE GLOVES CAN MAKING IN OUR MACHINES ,DIFFERENT SIZE USE DIFFERENT MOLD

FBN-200/400 one/double layer gloves making machine usage and features

1)FBN-400 machine suitable material is plastic film (LDPE),and FBN-200 machine suitable material is TPE .through sealing and cutting ,then forming into disposable gloves
2)This machine widely use for medical ,restaurant ,cosmetic ,food production and so on
3)The whole machine is controlled by computer, film feeding use stepping  motor, automatic counting by any quantity .
4)Transducer adjust speed ,automatic counting ,counting alarm available .
5)Automatic thermostat make the sealing more tight and smoothly
6)Different size of gloves can be customized

FBN-200/400 one/double layer gloves making machine Main technical parameters :

Film Max. diameter 60cm
Gloves width 240-300mm
Gloves length 200-400mm
FBN-400 machine Speed 80-200x2pcs/min
FBN-200 machine speet 80-200x1pcs/min
Film thickness 0.008-0.02mm
Voltage 220v.50hz
Main motor 1.5kw
Power 8kw

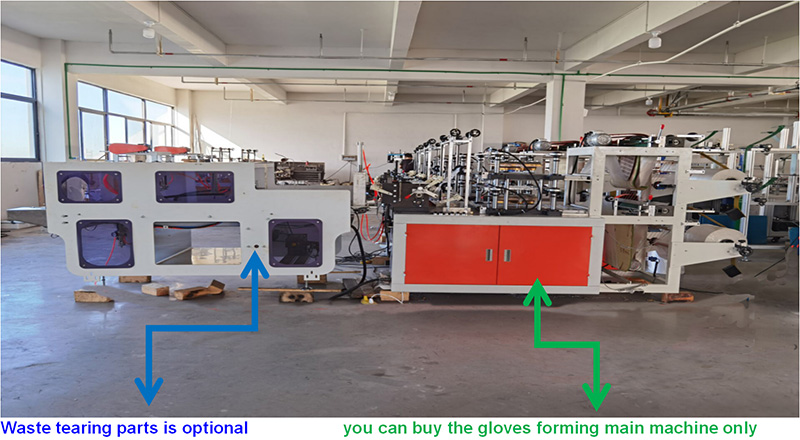

overall dimension with waste tearing part 3250*1000*1580mm
overall dimension without waste tearing part 4930x1000x1580mm
Weight with waste tearing part 700kg
Weight without waste tearing part 1200kg
Suitable raw material LDPE &TPE

FBN-200/400 one/double layer gloves making machine Main configuration

Name of machine parts Material or brand name &original ,quantity
Fuselage cover Steel
Raw material shelf Box iron
Feeding shelf 2 sets with machine
Main motor 1.5kw made in china Changzhou
Feeding motor Stepping motor 0.37kw two sets

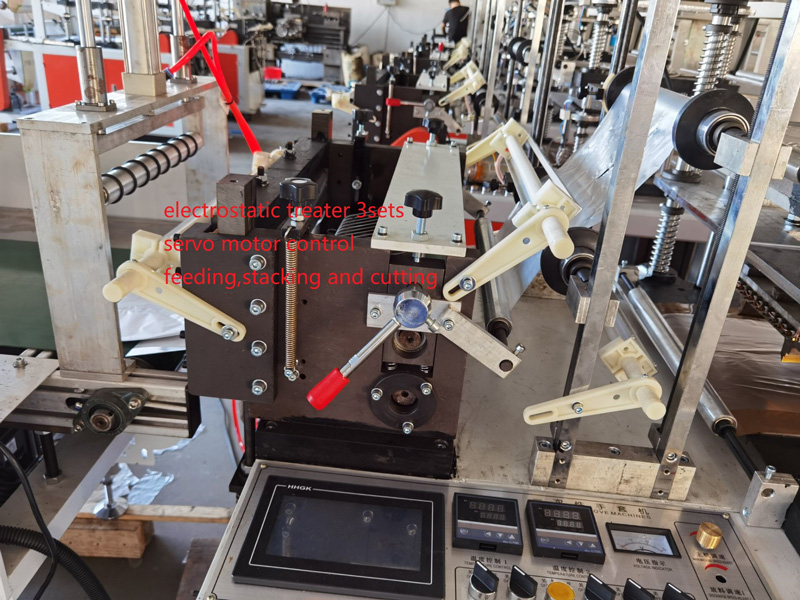

Servo motor

For feeding cutting and stacking

semi-finished gloves

0.37kw ,made in china ELESY

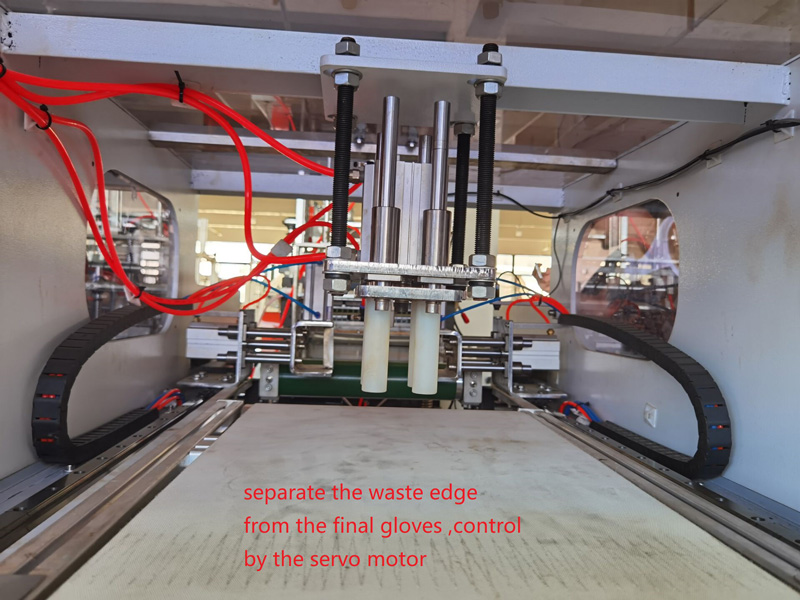

Servo motor

For robot waste discharge

2.09kw,Made in china ELESY

Cylinder Made in china Guangdong
Mixture driver  Made in china RUIAN
Main bearing Made in china Ningbo
Transducer 1.5kw and 0.75kw made in china
Electrostatic treater made in china three sets
Touch screen Made in china two set
Temperature controller Made in china
Optoelectronic switch Made in china
Button switch Made in china

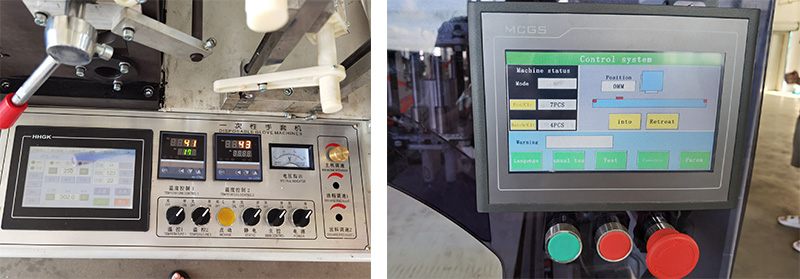

ONE SET TOUCH SCREEN CONTROL THE GLOVES FORMING AND ANOTHER TOUCH SCREEN CONTROL THE FINIAL GLOVES SEPARATE  WITH THE WASTE MATERIAL

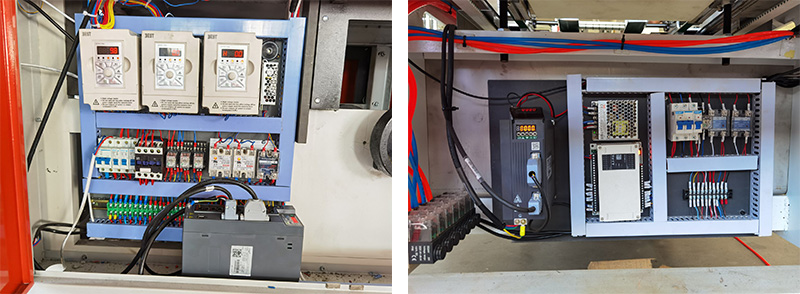

THE ELECTRICAL PARTS OF OUR GLOVE MACHINES
