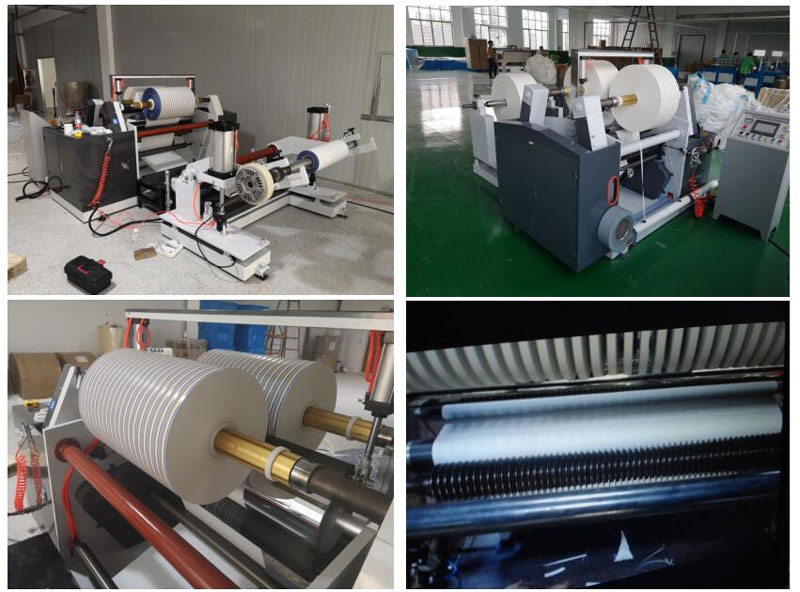

Paper Slitting machine

Paper Slitting machine

Paper Slitting machine

Paper Slitting machine manufacturer

Paper Slitting machine for sale

1.Equipment effective width 700MM, mechanical speed 180M/min
2.The machine consists of corrective unwinding institutions, cutting structure, the rolling bodies, transmission and electrical control.

Main Technology parameter:

Name Paper slitting machine
Speed 10-150m/min
Power supply 380v  3phase  50hz
Total power 9kw
Suitable thickness of paper 20g-120g/m2
Max.diameter of raw material 1000mm
Max.width of raw material 650mm
Max.diameter of slitted paper (after slitted) 600mm
Diameter of air expansion shaft 76mm
Machine size Feeding parts: 1650*1700*1000mm
  Machine parts: 2200*1300*1200mm
Machine weight 2100kg

(A) unwinding institutions
The device has a manual aspect of offset can be eliminated due to the tension of raw material at both ends arising from Bohou or paper core non-circularity different and wrinkled.
Unwinding tension to the high linear magnetic powder brake actuator output torque balancing the tension fluctuation can be reduced to a minimum.
1-.Unwinding specifications: maximum width of 700mm, diameter 1000mm
2-.Paper tube clamping method: air shaft clamping
3in 1 root of the air shaft:  1 piece
          A pneumatic gun:  1 piece
3-.Tension control: closed-loop tension control.
The output control: 100N.M  1 piece
magnetic brakes:  1 piece
4-.Correction perform: tracking the substrate by the photoelectric eye correction controller for a given signal, the motor drive ball screw execution.
photoelectric eye:  2 piece
linear bearings:  2 piece
corrective institutions:  1 piece
The photoelectric eye fine-tuning:   2 sets

(B) cutting machine configuration
  The agency uses carbide precision disc disc knife (slitting relatively thick aluminum foil, paper and other materials) or (and) straight knife cutting (slitting general plastic film), neat incision, long life, cutting up and down knife shaft width adjustment processing, between the upper and lower blade shaft gear speed matching. Turning the handwheel implementation under the knife, the knife continues to rotate automatically rely.
1-Tool axis: under the knife shaft: each one piece
2- locking device: a fast by knife device, able to lock on the knife shaft, to avoid slitting knife from the up and down or move due to quality problems.
Specifications:  rocker arm:     1 piece
                    locking shaft:   1 piece
                    With gear:     1 pair
                    worm gear:    1 piece
3- Row waste: by blowing high pressure air feed tube diversion, the scrap material to exclude
   Specifications:      fan:     1set
                        duct:     1 piece
4- main wall: steel wall panels, effective shock absorption, enabling machine high-speed and stable operation.
  Specifications: 30MM
5- Guide rollers: chrome plated, polished.
  Specifications:  φ80 × 750mm certain

(C) the rolling bodies
The agency uses the left-right axis biaxial winding winding with pressure arm balance internal and external pressure. The transmission uses two independent magnetic particle motor drive uniaxial tension adjustable.
1-Winding Specifications: width up to 700mm, diameter 600mm(or diameter 420mm)
2-Paper tube clamping means:  air shaft clamp (according to customer material specifications)
Specifications: 3in air shaft:   2 piece
3-Rewinding pressure: differential pressure pneumatic compression, the pressure can be adjusted by pneumatic pressure regulator.
Specifications: Pressure arm: 2 piece
                   Cylinder: 2 piece
4-Tension control: magnetic motor constant torque output
Specifications: motor controller:2 sets
5-Winding execution: magnetic motor 2 sets (specifications 50N.M)
Single head swing arm unloading(Or general discharge)

(D) transmission mechanism
The inverter is used to control the main motor operation, convenient lifting speed, the speed adjustment the excessive soft, smooth.
Drive mode: General inverter control of AC motor drive
Specification: 7.5KW exchange motor
Supporting inverters (domestic well-known brand, quality assurance)

(E) Major appliances:
Centrally electric control cabinet box, elegant, and easy to operate.
Operation cabinet:1 set
Comptroller display a realistic real-time linear velocity, Hutchison meters automatic stop function (with deceleration stop function, Hutchison Mickey the error)
Optical correction controller:1set
Others:Button, contactors, air switches
