Description：
1.The machine has 5 parts：paper feeder，glue feeder，winding unit，cutting unit，gather/collector unit.
2.It use for produce 5--12mm diameter paper straw(different diameter need through change machine parts，the length of straw it’s adjustable).
3. The machine is controlled by schneider PLC. And the cutting unit adopts schneider servo motor to control the multi-knife cutting system，the servo motor synchronous tracking cutting，higher precision,time-saving and efficient.
4. The fuselage and main accessories are made of stainless steel to ensure product hygiene and environmental protection.
Main Technology parameter:
| AC-12 High speed paper drinking straw making machine | AC-12G High speed paper drinking straw making machine | |||
| Item | Parameters |
|
Item | Parameters |
| Paper layers | 3 layers | Paper layers | 3 layers | |
| Diameter | 6mm-16mm | Diameter | 5mm-12mm | |
| Thickness | 0.5-2mm | Thickness | 0.5-2mm | |
| Stable Speed | 30-40m/min | Stable Speed | 60-70m/min | |
| Cutting Mode | Multi-Cutiing | Cutting Mode | Multi-Cutiing | |
| Cutting System | Tracked by Servo Motor,On-line Multi-Cutting | Cutting System | Tracked by Servo Motor,On-line Multi-Cutting | |
| Gluing Mode | Single or double side | Gluing Mode | Single or double side | |
| Single or double side | 380V Three-Phase 50Hz | Single or double side | 380V Three-Phase 50Hz | |
| Staff Required | 1-2 | Staff Required | 1 | |
| Weight | 1300kg | Weight | 1600kg | |
| Operation Area | 100000*4000mm | Operation Area | 9000*5000mm | |
Configuration list：
| AC-12 Electrical configuration list： | AC-12G Electrical configuration list： | |||||||||
| No. | Name | Spec | Qty | Brand | No. | Name | Spec | Qty | Brand | |
| 1 | Motion Controller | SMC304 | 1 | Leadshine | 1 | Motion Controller | SMC304 | 1 | Leadshine | |
| 2 | Frequency Changer | ATV310HU40N4A | 1 | Schneider | 2 | Frequency Changer | ATV310HU40N4A | 1 | Schneider | |
| 3 | Touch Screen | HMIGXU3500 | 1 | Schneider | 3 | Touch Screen | HMIGXU3500 | 1 | Schneider | |
| 4 | Encoder | 2000p/R E6B2-CWZ6C | 1 | OMRON | 4 | Encoder | 2000p/R E6B2-CWZ6C | 1 | OMRON | |
| 5 | Servo Motor | 1.5KW | 1 | Schneider | 5 | Servo Motor | 1.5KW | 1 | Schneider | |
| 6 | Air Cylinder | MALJ32*20-20 | 5 | Airtec | 6 | Air Cylinder | MALJ32*20-20 | 5 | Airtec | |
Configuration list：
Machine pictures:

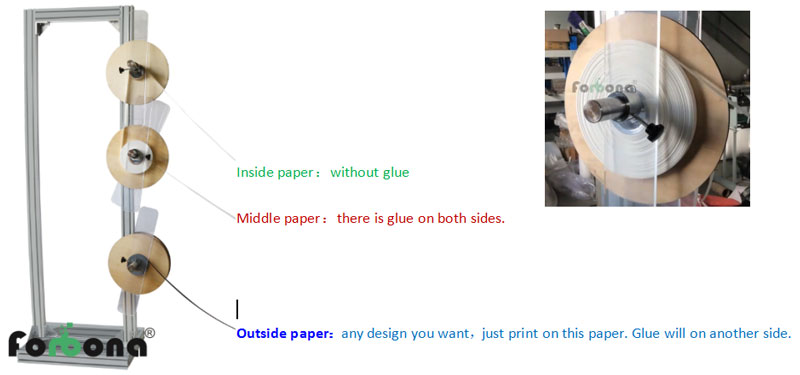

1、Paper feeder

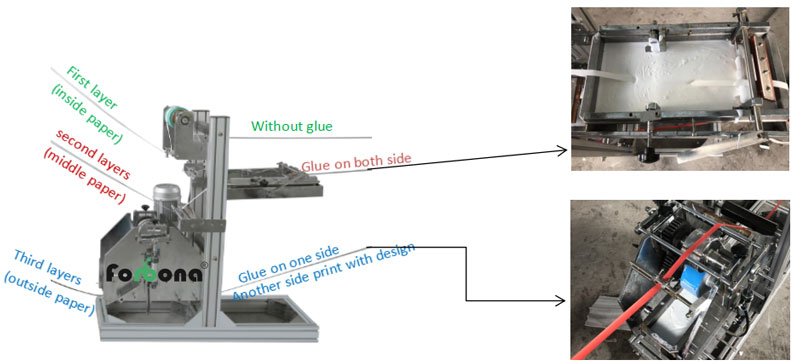

2.Glue unit:

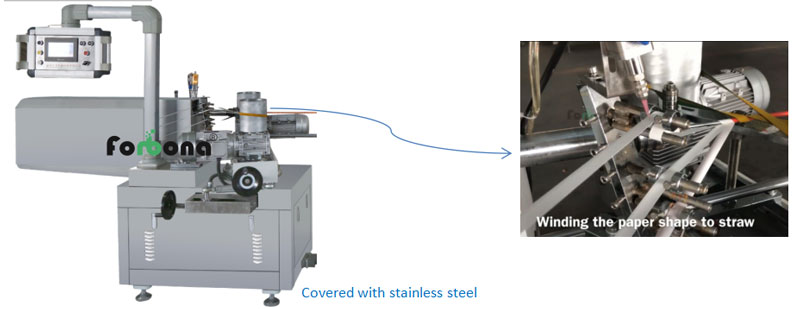

3. Winding unit:

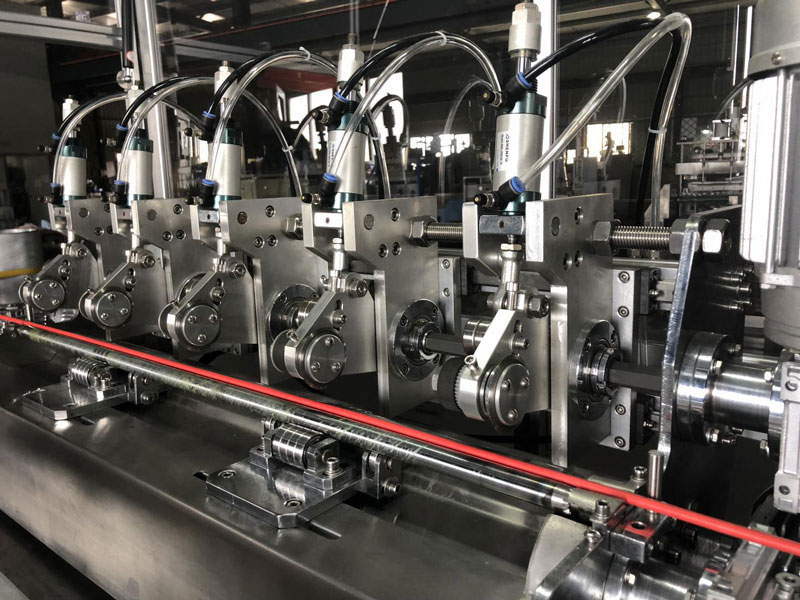

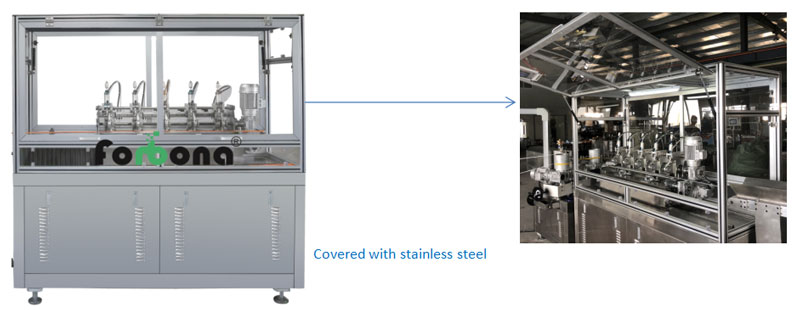

4. Cutting unit:

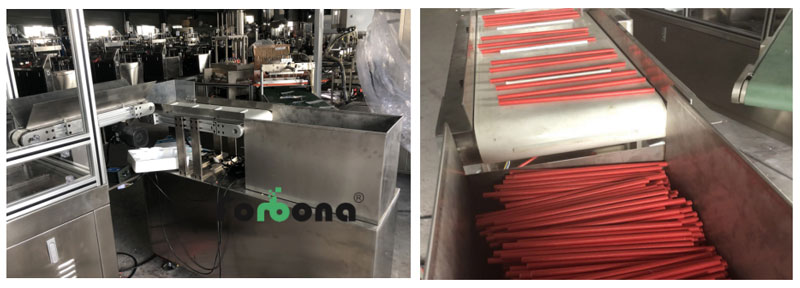

5. Gather/Collector unit:
Details information of material：
paper information.：Max.diameter of roll on machine 600mm
name: white kraft paper
for diameter 5--8mm straw：
the inner paper： width 13.7mm、weight： 120 gram / square meter
the second paper： width 14.2mm、weight： 120 gram / square meter
the third paper： width15mm、weight：60 gram / square meter
for diameter 10 -- 12mm straw：
the inner paper： width 16.7mm、weight：120 gram / square meter
the second paper： width 17mm、weight：120 gram / square meter
the third paper： width18mm、weight：60 gram / square meter
one piece of straw about 2.6gram (included the glue weight)
glue information：
10% PVA
40% PVAC
50% Water
