FBN-800 Single Station Paper Box Gluing Machine

FBN-800 Single Station Paper Box Gluing Machine
FBN-800 Single Station Paper Box Gluing Machine
FBN-800 Single Station Paper Box Gluing Machine
FBN-800 Single Station Paper Box Gluing Machine

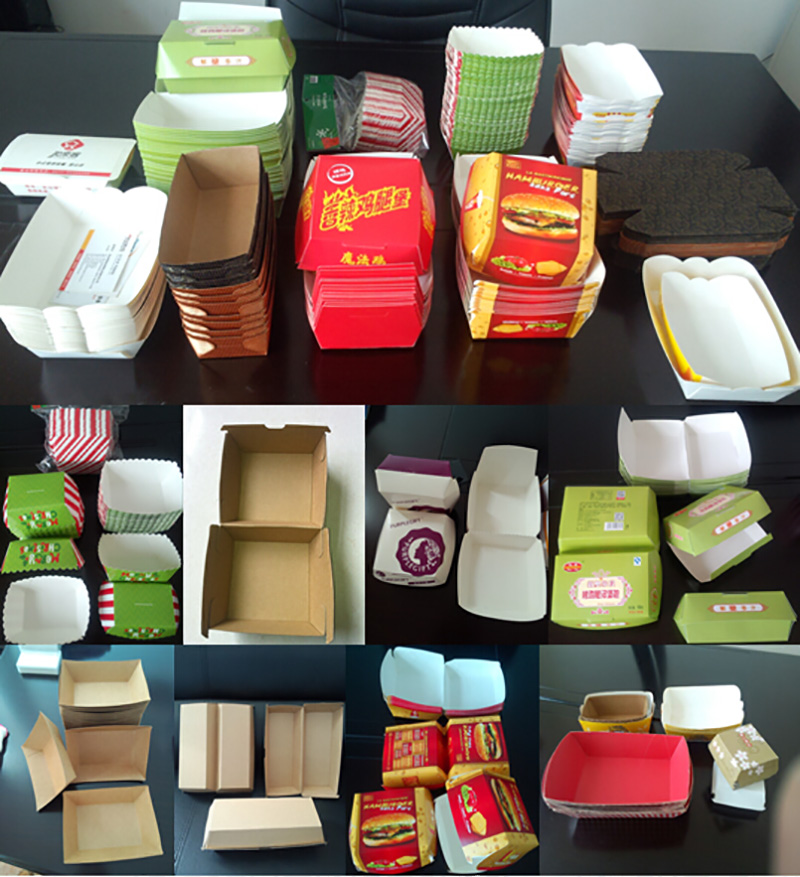

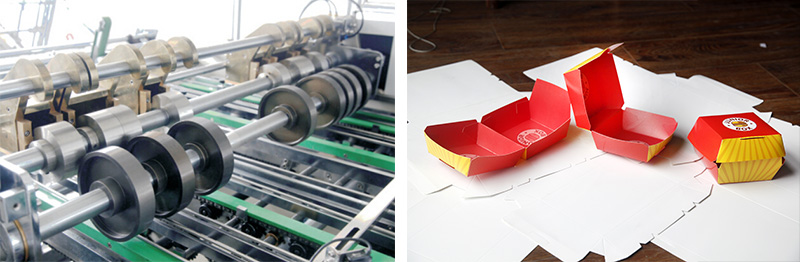

Above products made by our machine

Quotation for FBN-800 single station fully automatic paper box gluing machine

Name of machines FBN-800 Fully automatic single station paper box gluing machine
Payment 30%T/T for advance ,70%pay by T/T before shipment
Delivery time 10-30days
packages Film and Three play-board packing export standard
Guarantee time Electrical parts half year ,machinery parts one year
After sale service Our factory will sent the engineer to the buyer’s factory install and running the machines training the worker also , but the buyer pay for the engineer’s visa, food ,hotel ,ticket go and back. the salary is 100usd/day .

FBN-800 single station Fully automatic paper box gluing machine usage and features:

1:New design three–dimensional paper box gluing machine is specialize in producing many kinds of paper products .which can produce hamburger box ,square box ,food box (portable outside)other Boxes and so on .which made by paper board and corrugated paper
2:Paper box gluing machine running stable ,high efficiency ,and high out put .
3:It is a multi-function machine ,only change the mold ,then can produce many kinds box,and many size of box .such as hamburger boxes, chip boxes ,and so on .
4:The machine use water –based glue adhesive glue device, can achieve high efficiency, high accuracy .Water –based glue is a water-soluble adhesive for food grade(high security).
5:The machine adopts PLC control system .more intelligent and convenient
6:the machine can collect accumulation product automatic .the machine can counting the final product.
7:The machine adopts high quality configuration .the whole machine running process smoothly.

FBN-800 single station Fully automatic paper box gluing machine specification:

Machine model FON-800
Paper standard 150x150-500x380(mm)
Specification of paper 200-600g/m2
Max.Paper thickness 1.5mm
Speed 30-160pcs/min
Max. width of paper 550mm
Main motor 4kw.    380V 50HZ 3phase
Machine weight 1800kg
Machine size 3500x1200x1600mm

FBN-800 single station Fully automatic paper box gluing machine configuration

Name of parts Brand name &original
Linear grideway HIWIN ,Made in Taiwan china
Belt USA OR ITALIA
Solenoid valve AIR TAC made in Taiwan china
Low-voltage electrical Siemens Germany
Inverter Siemens Germany
Time relay Siemens Germany
PLC Siemens Germany
Touch screen MCGSTPC made in Taiwan china

FBN-800 single station fully automatic paper box gluing machine details images and explain.

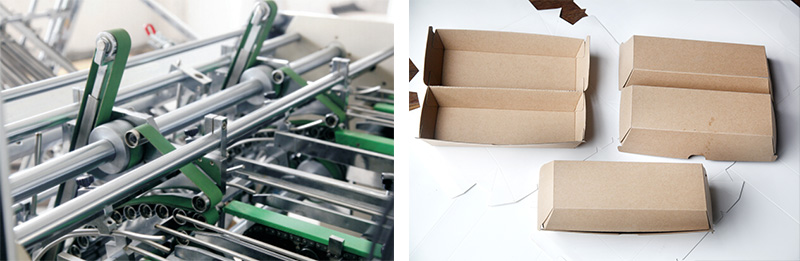

Paper Delivery Device: Transmit width use the threaded rod adjustment easily.

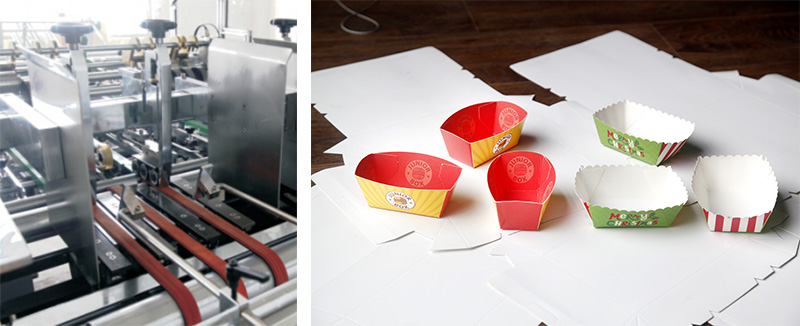

Gluing Device: standard stick type use the roller wheel gluing , and any type of glue, glue quantity can adjust in the production.

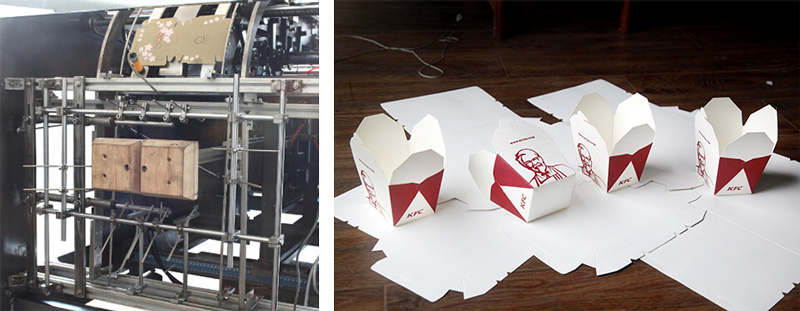

Forming unit: formed by stamping mechanical connecting rod type structure, it is simple structure , working stability. Die height is adjustable, it can do any kinds of shapes, taper carton,  flip burgers box specially.

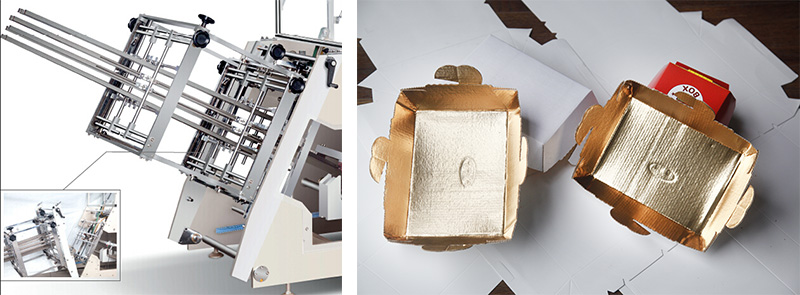

Open type Product Collect device  ,forming frame adjust is through the hand wheel, simple and convenient, when change the mold, it can be open forming frame ,in order to make big space,  convenient to change mold and adjust molding positioning.

Counting Unit: it can be punch mark according to required , and each group and total amount can be automatic counting

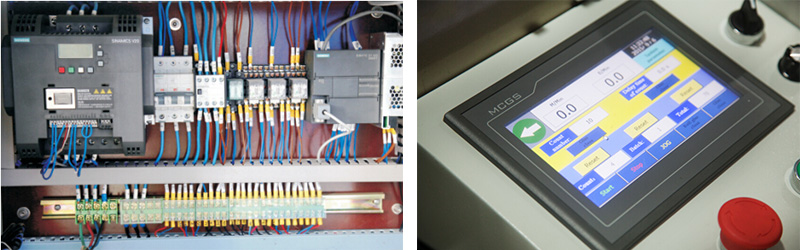

Operating System : It adopts PLC automatic control system, touch screen operation. European program control system, it is convenient, simple, efficient and stable.
