speed: 180--210pcs/min
This is full automatic machine. You just feeding the material（Non-woven or PE Plastic film and rubber band ）, then you will get final product. You can produce dust-proof Non-woven cap and PE plastic film cap by one machine.
Characteristic:
1.It has the advantages of good quality, low price, high output, saving labor and reducing cost. It can be customized according to customers' requirements.
2.Ultra-high power ultrasonic welding is used to fix both ends of non-woven fabric and rubber band effectively.
Sample：

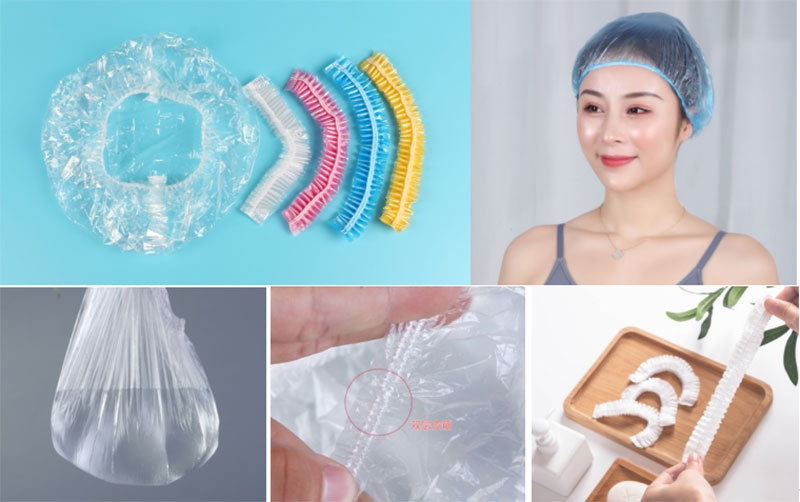

PE Plastic Film:

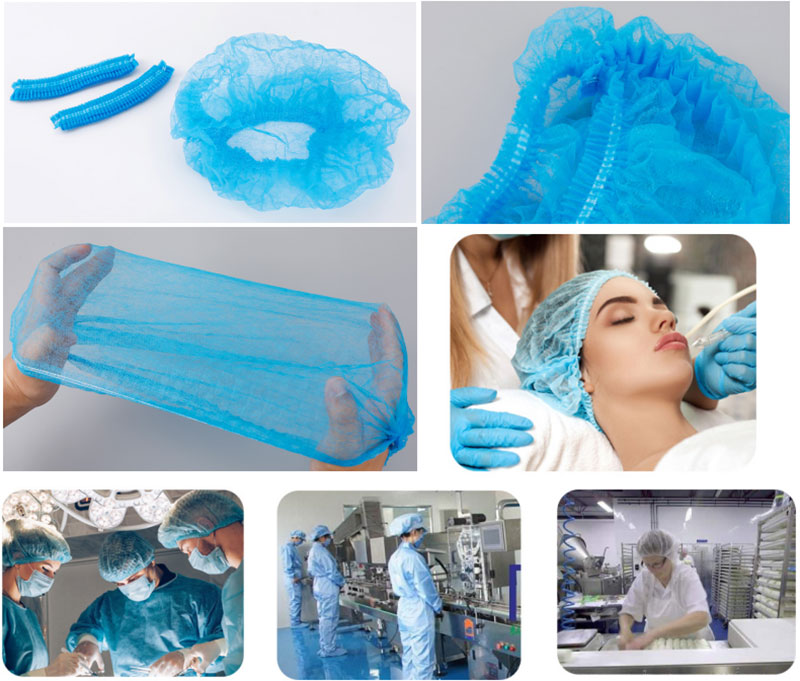

Non-woven:
Parameter:
| Model | FBN-YMJ |
| Speed | 180-210PCS/MIN |
| Power | 5KW |
| Voltage | 220v single phase 60HZ |
| Package size | 3900×820×1550mm(L*W*H) |
| Weight | 850KG |
| Material Supply | |||
| Name | Non-woven | PE Plastic Film | Rubber band |
| Suitable Width | 480mm | 480mm | 4mm |
| Suitable thickness | 8-17gram | 0.01-0.02mm | / |
| Max.diameter of roll | 800mm | 800mm | / |
Main configuration:
| Name | Note | Quantity | origin |
| Feeding device | Mechanical shaft | 1pcs | China |
| Adjust hemming | Stainless steel | 2pcs | China |
| Traction roll | Post-position | 1unit | China |
| Ultrasonic | 55 | 3pcs | China |
| Hemming device |
|
|
China |
| Traction roll | Pre-positon | 1unit | China |
| Control device | Size length control | 1set | China |
| Cutting device | Rolling type | 1set | China |
| Gear box motor | 1.5KW | 1pcs | China |
| Frequency converter | 1.5KW | 1pcs | China |
| electrical equipment | Schneider |
|
France |

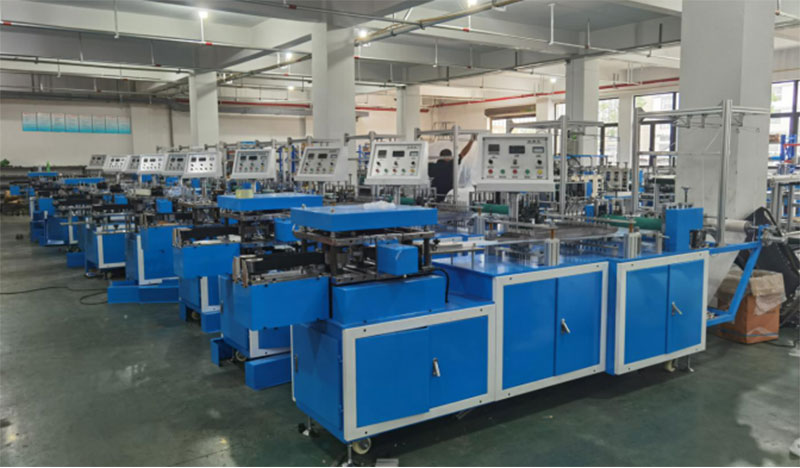

Machine pictures: 50 sets machine made by per month.

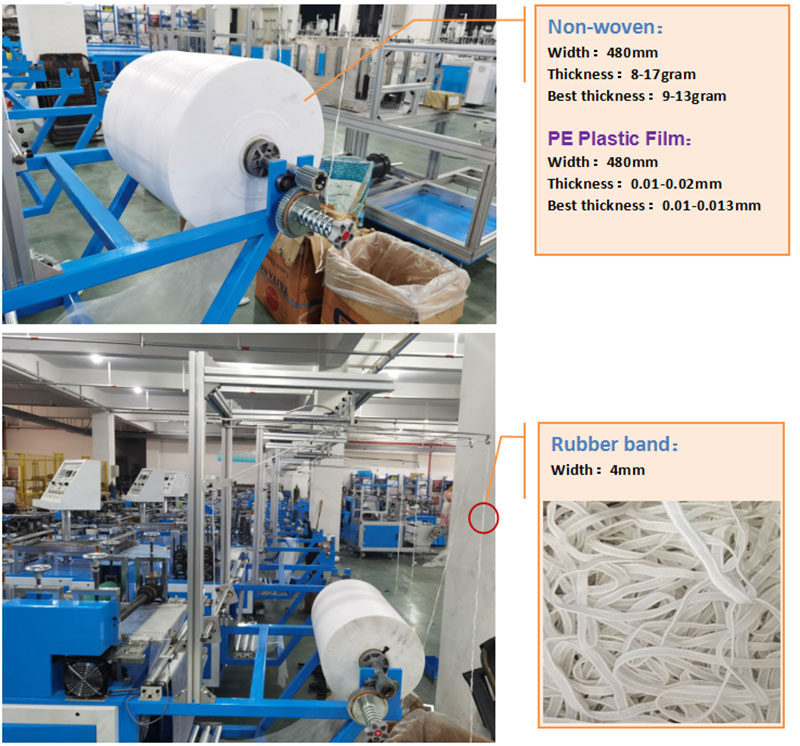

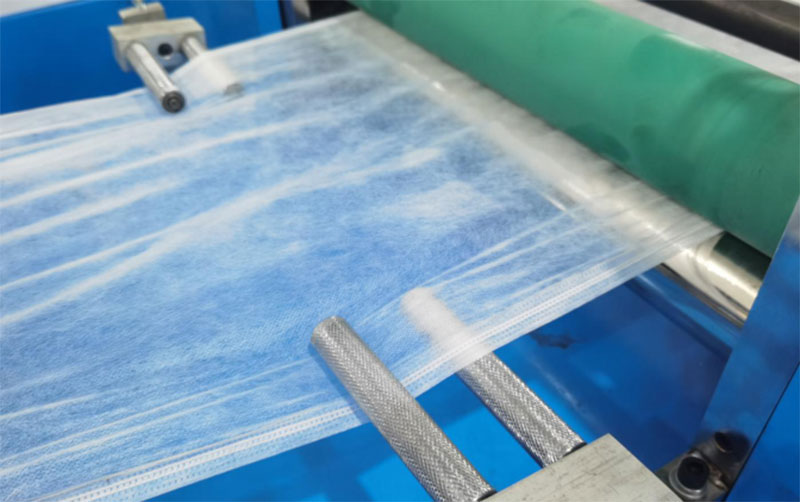

Feeding material：

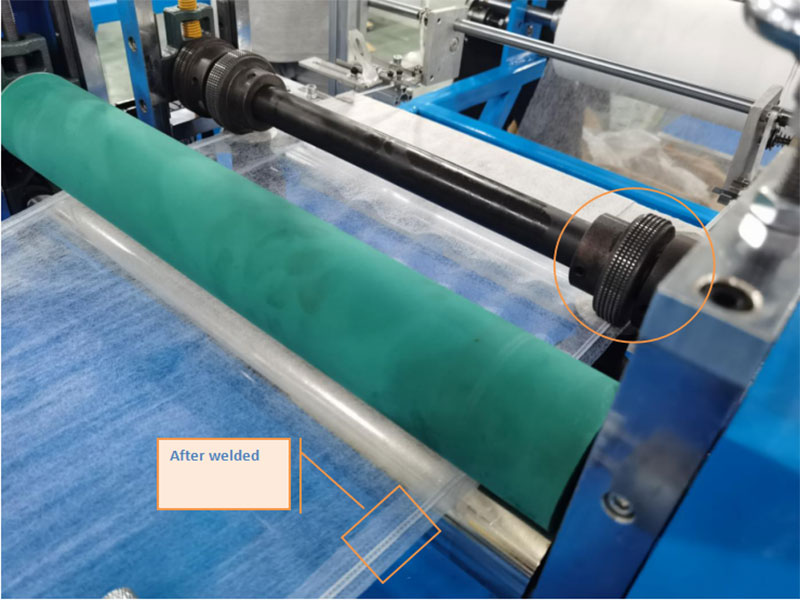

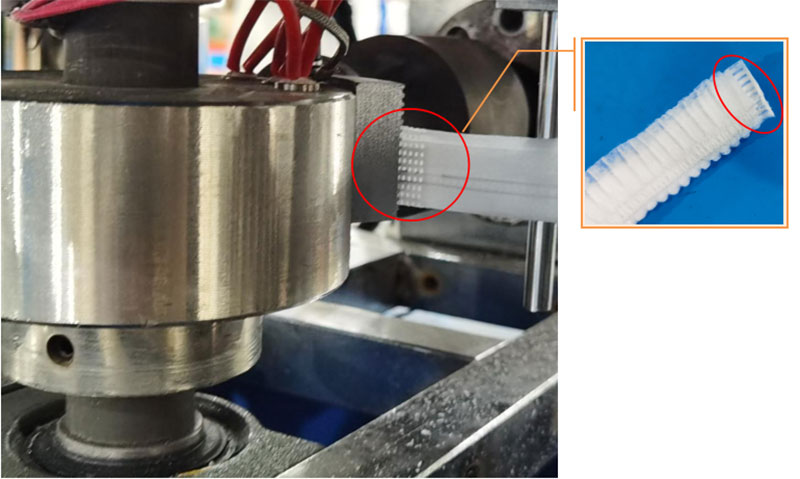

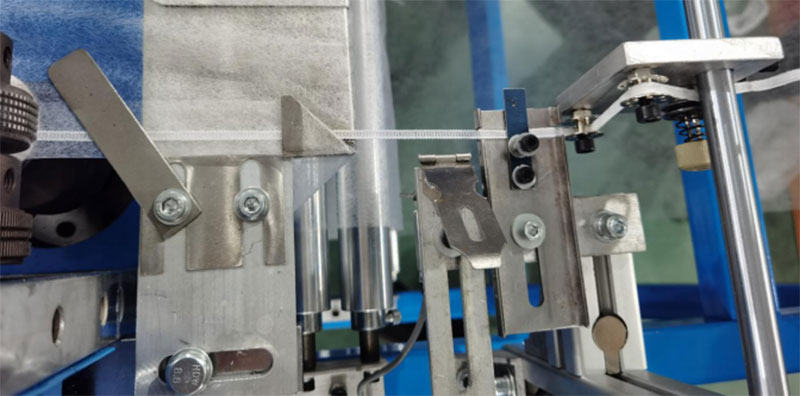

Welding the rubber band and non-woven by ultrasonic (Totally 3 sets on machine).

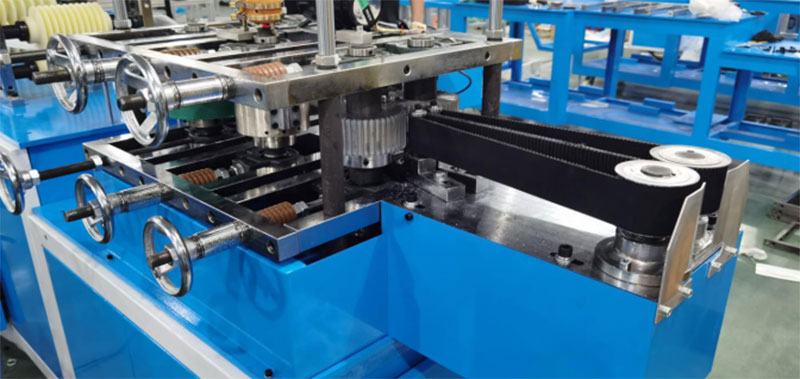

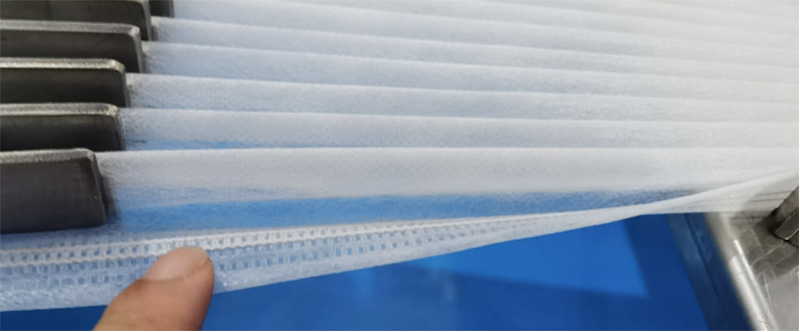

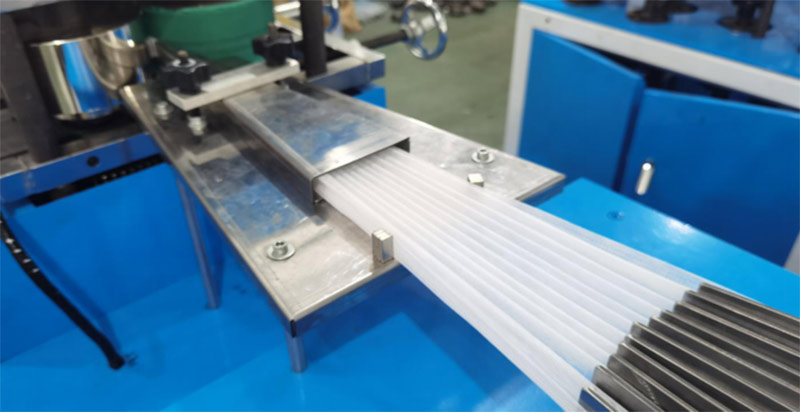

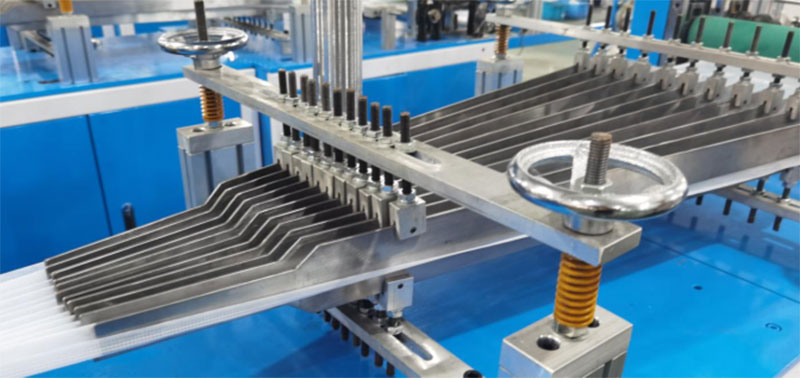

Folding unit:

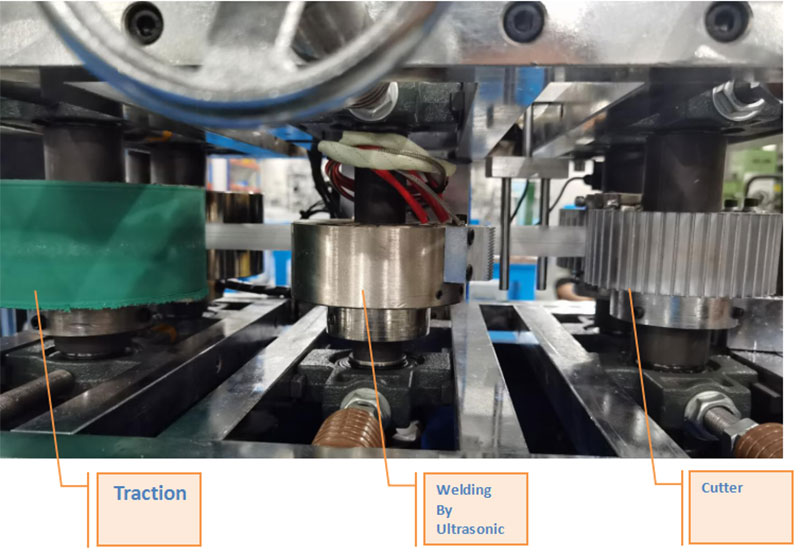

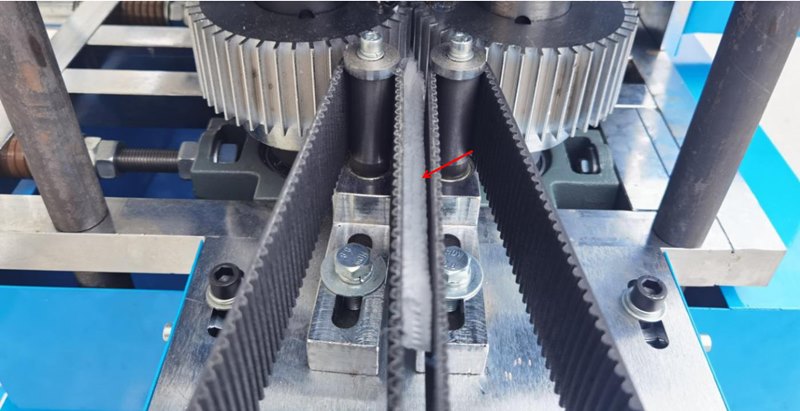

Welding and cutting unit:

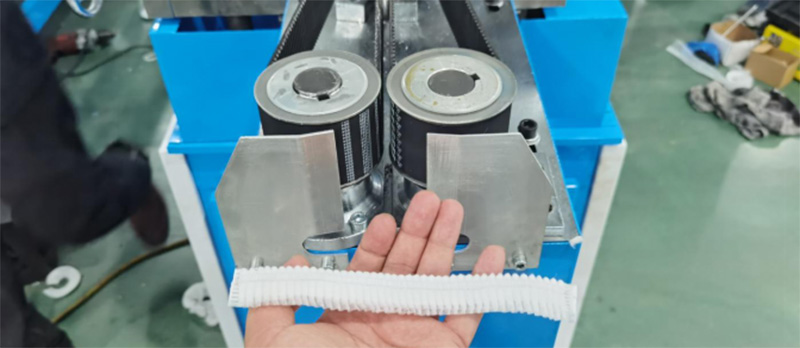

Finished products comes out：
