Full Automatic Face Mask Machine  (speed:90-110pcs/min)

we are the professional manufacturer of face mask machine in China. We have ISO9000:2015 , SGS , CE certificate.
our face mask machine including material feeder,blank mask making unit,ear loop welding unit and
conveyor unit in one machine.

Technical characteristics :
1. Three rolls of fabric are automatically aligned and fed,and bilateral symmetrical ultrasonic continuous blanking;
2. The nose clip are automatically cut and welded by ultrasonic.
3. The ear loop are automatically welding by ultrasonic.
4. The machine adopt 9sets servo motor to control machine,high production efficiency.

Main Technology parameter:

Speed 速度 90-110pcs/min



Total power 功率

10.4kw, 220v single phase 50hz
单相电

Equipment structure

设备结构

Main mask machine

with ear-loop welding unit

打片机

Finished product dimension成品尺寸 175 ×95mm

Applicable material

合适的材料

non-woven fabric, synthetic fiber

无纺布,合成纤维

Processing method

加工方式

ultrasonic welding

超声波焊接

Applicable layer

合适的层数

3 layers/ply

3层

Control mode

控制方式

Motion controller

运动控制器

Drive mode

驱动方式

9 sets servo motor

Air pressure

气压需求

0.6mpa

Machine Size

尺寸

4600 x2600 x2100mm

Machine Weight

重量

700kg

Electrical configuration list:

MASK MACHINE

No.

Name

Brand

1

PLC

Taiwan

2

Touch screen

触摸屏

Taiwan

3

Inverter

变频器

China

HOLIP

4

低压电器

China

EAR LOOP WELDING MACHINE

No.

Name

Brand

1

Motion controller

运动控制器

China

2

Touch screen

触摸屏

China

3

Servo Motor

伺服电机

China

4

Switch 开关

China

5

Relay 继电器

Japan

6

Switching power supply开关源

Taiwan

Applicable material information 适用来料规格:

Material Supply
Name Outer Non-woven (blue) Inner Non-woven (white)

Melt-blown

fabric

Nose clip

Ear loop

Suitable Width

175mm

195mm

175mm

3mm

3-3.2mm

Suitable thickness

25gram

25gram

25gram

1mm

1:2.5

Max.diameter of roll

600mm

600mm

600mm

400mm

/

Inner diameter of roll

60mm

60mm

60mm

200mm

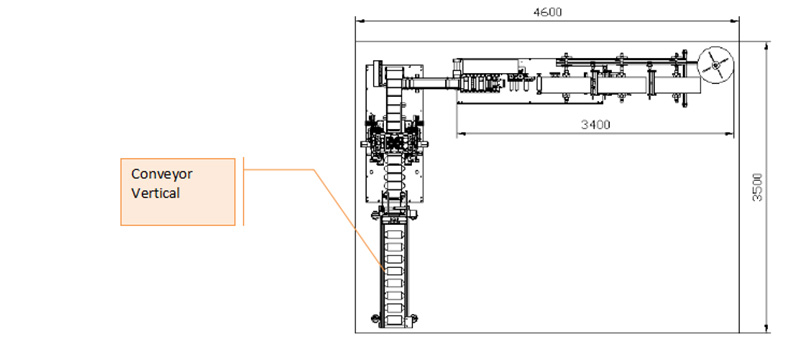

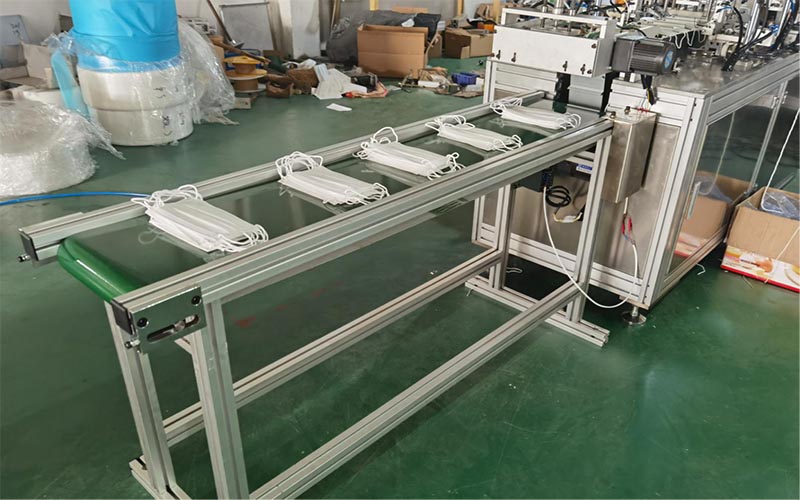

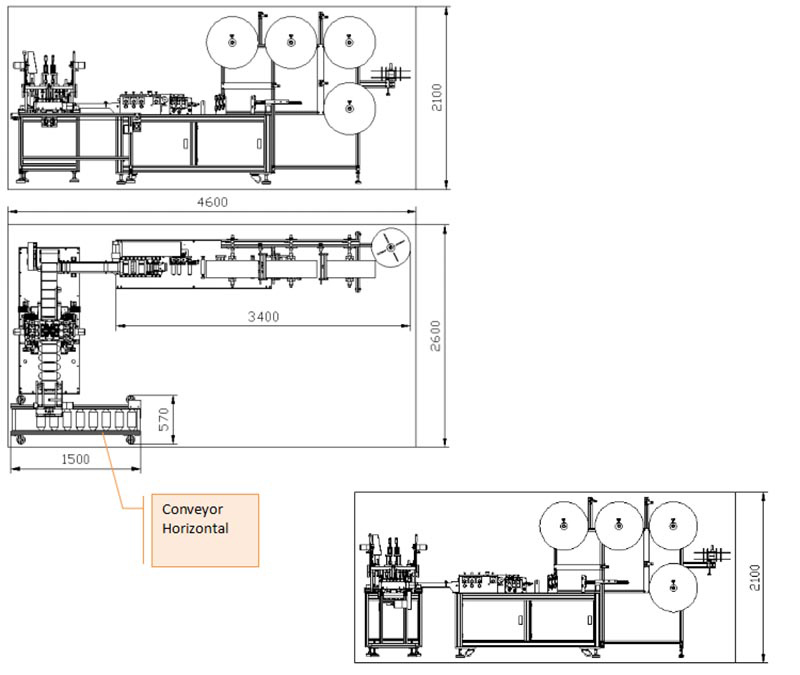

Machine size:you can set conveyor in horizontal or vertical by yourself.

Face Mask MachineFace Mask Machine

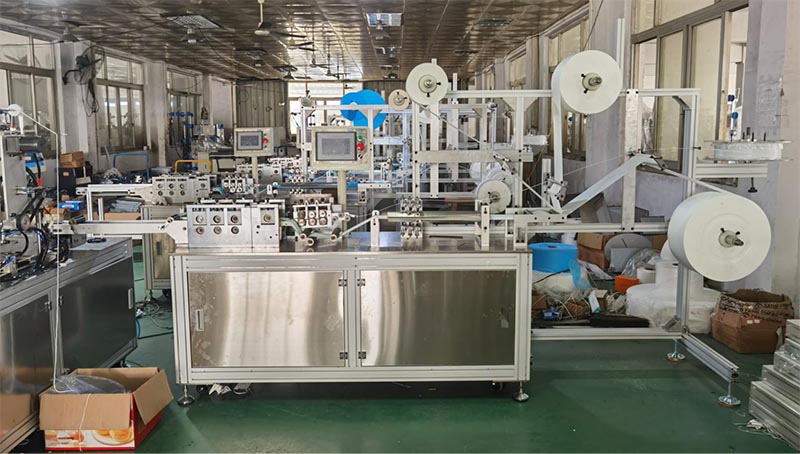

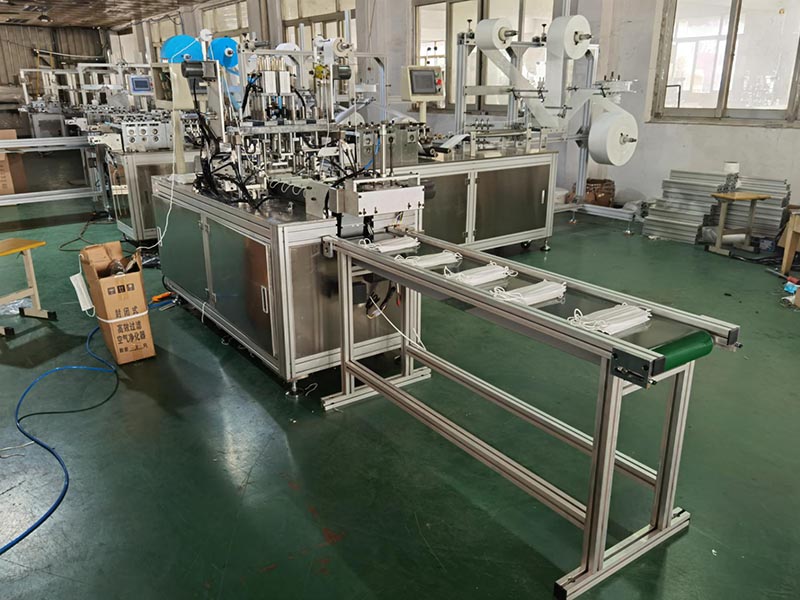

Machine pictures:mask making machine to produce blank mask.

Face Mask Machine

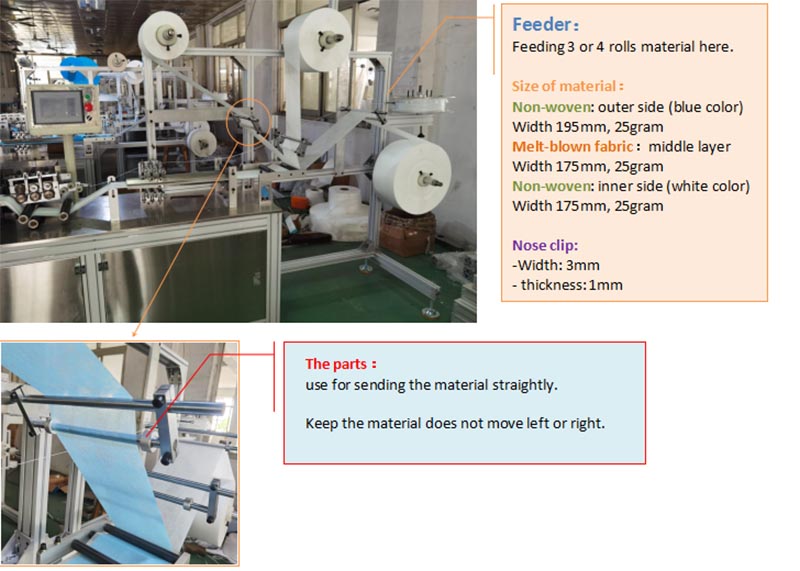

Material roll feeder:

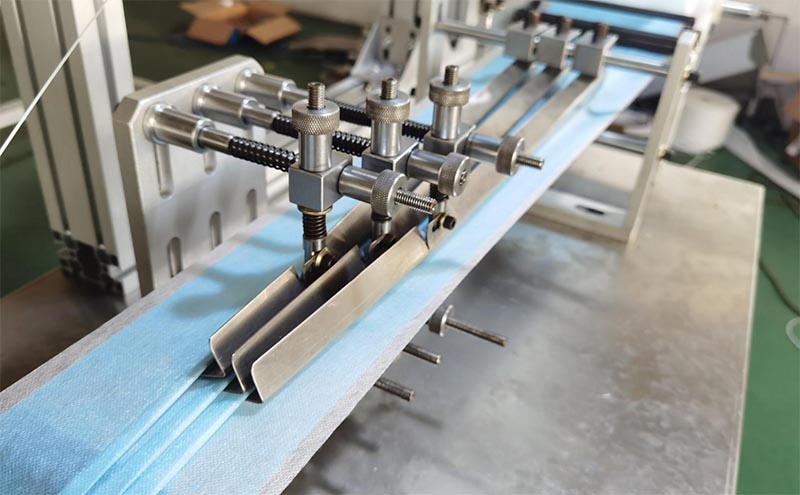

Folding unit:easy to adjustment

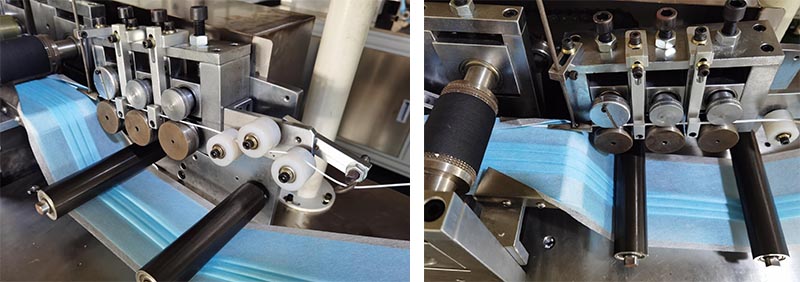

Nose clip feeding and cutting:

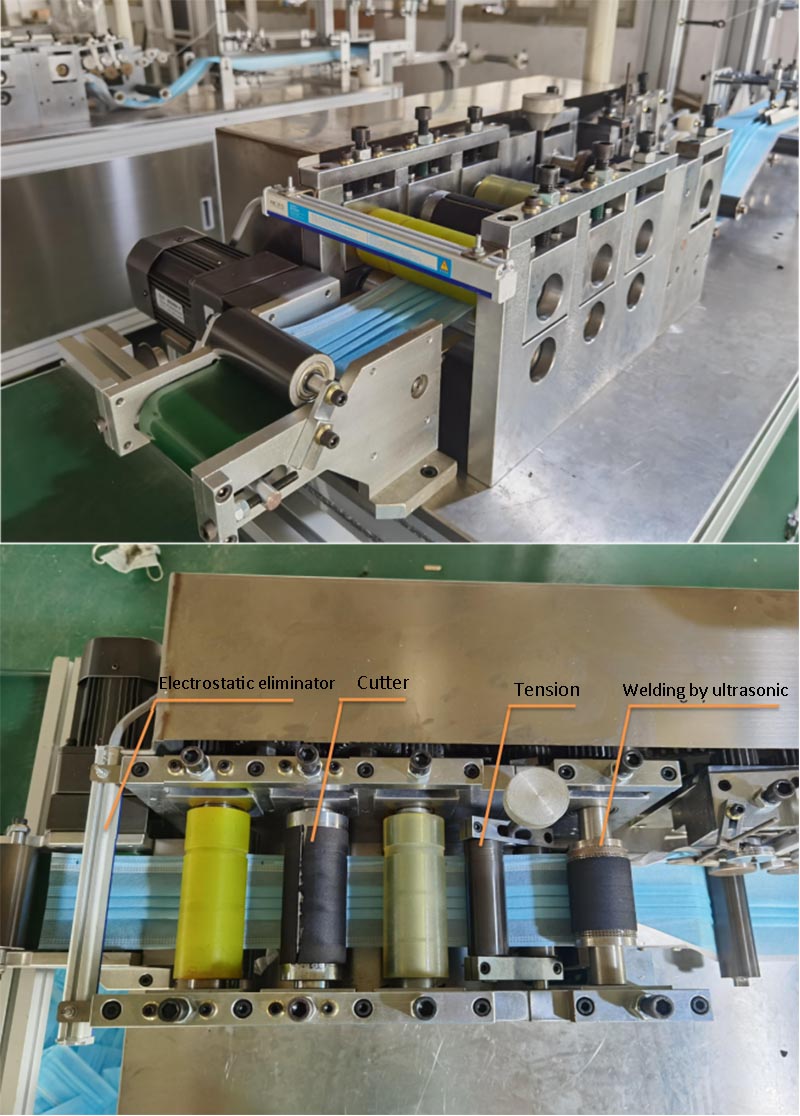

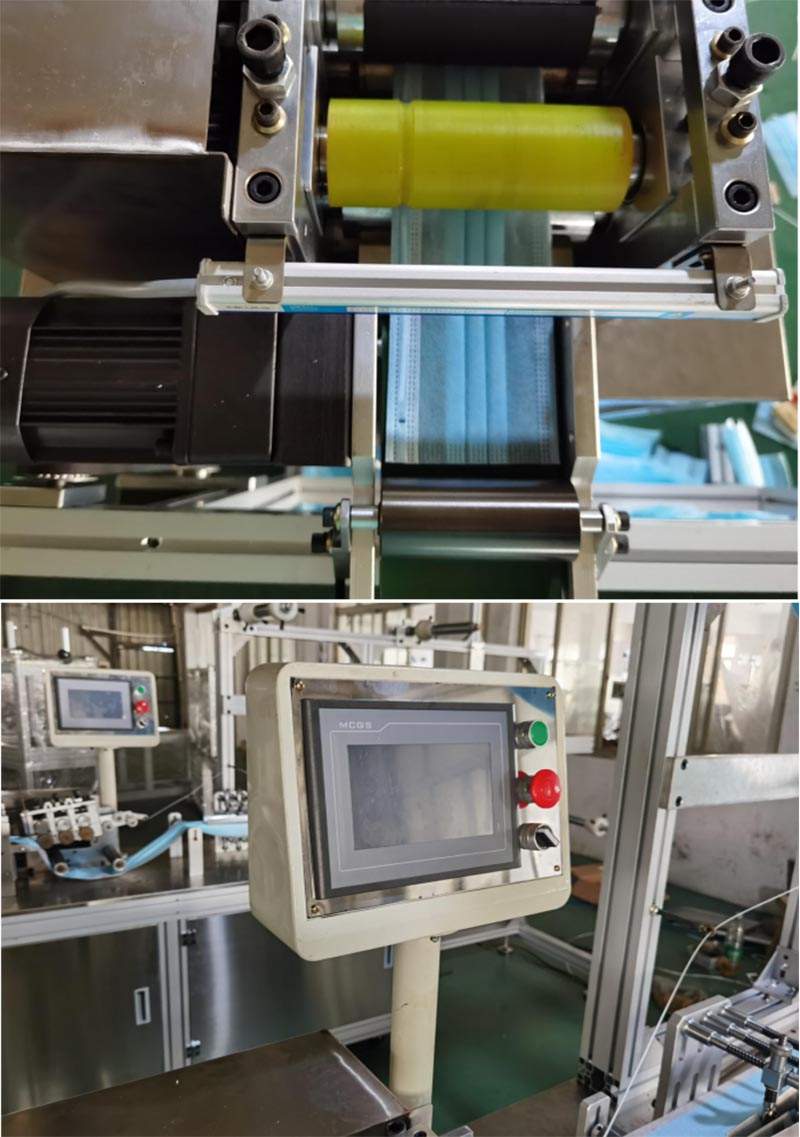

Forming and cutting unit:

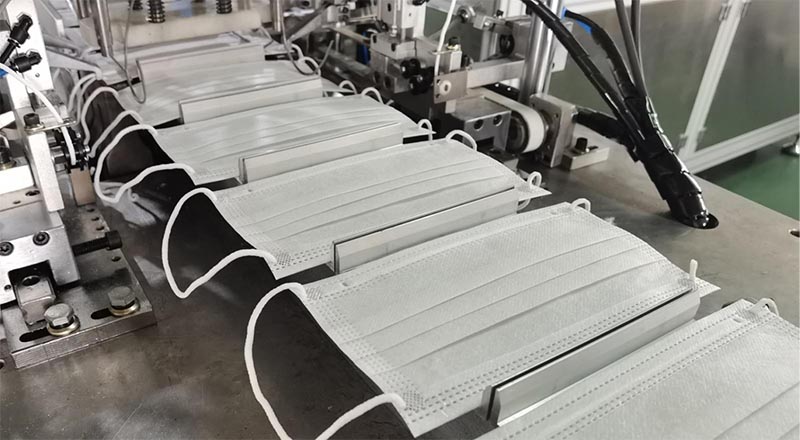

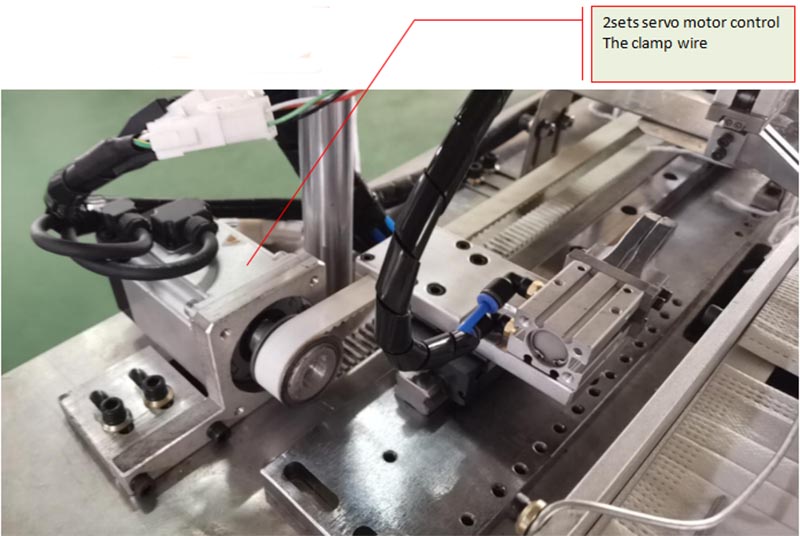

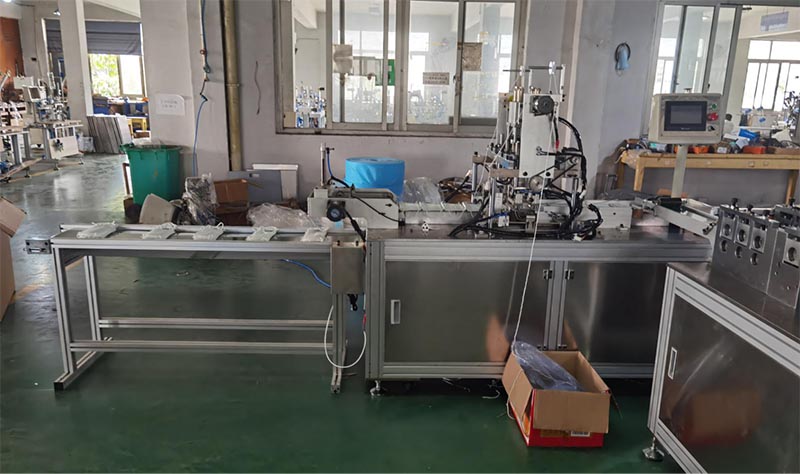

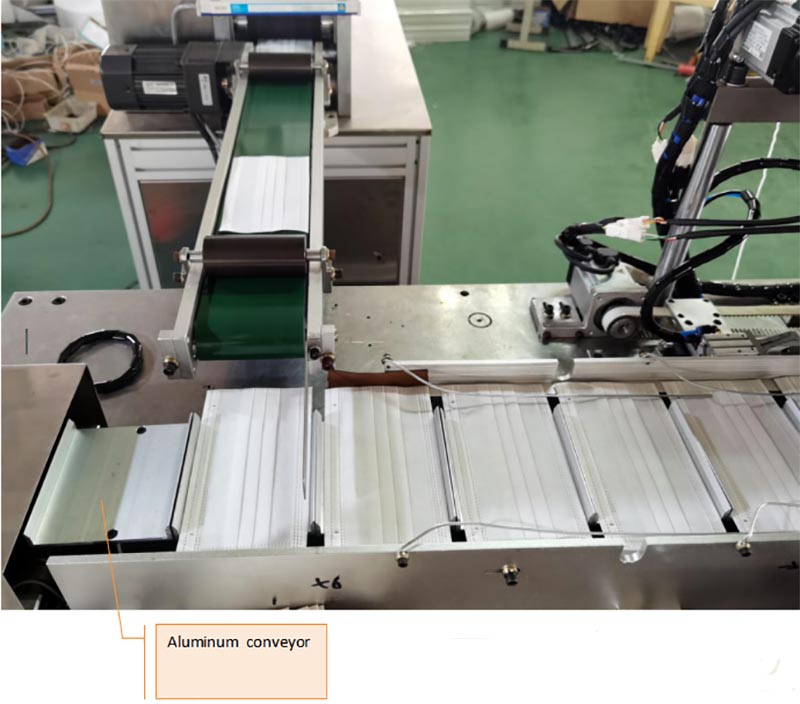

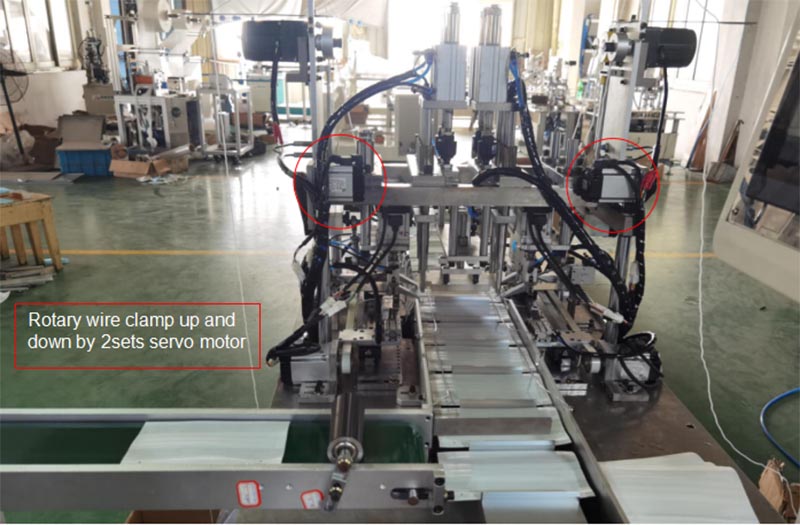

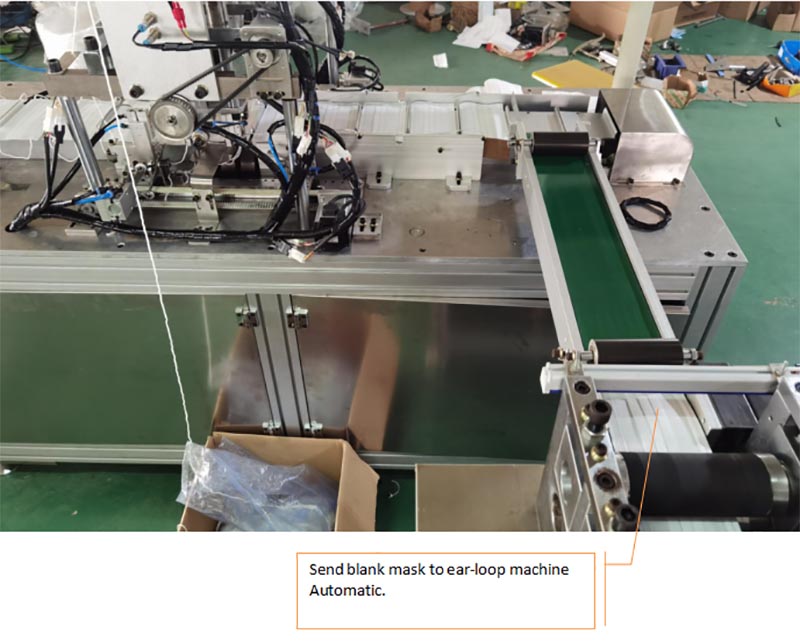

Earloop welding machine unit:

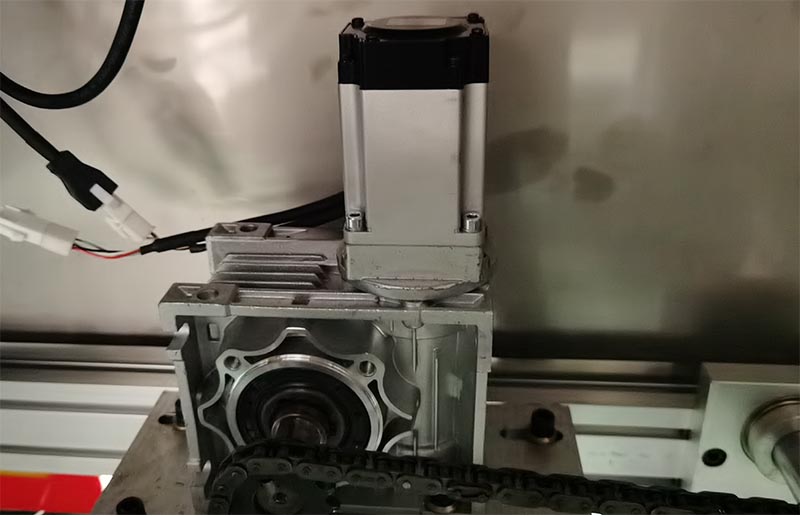

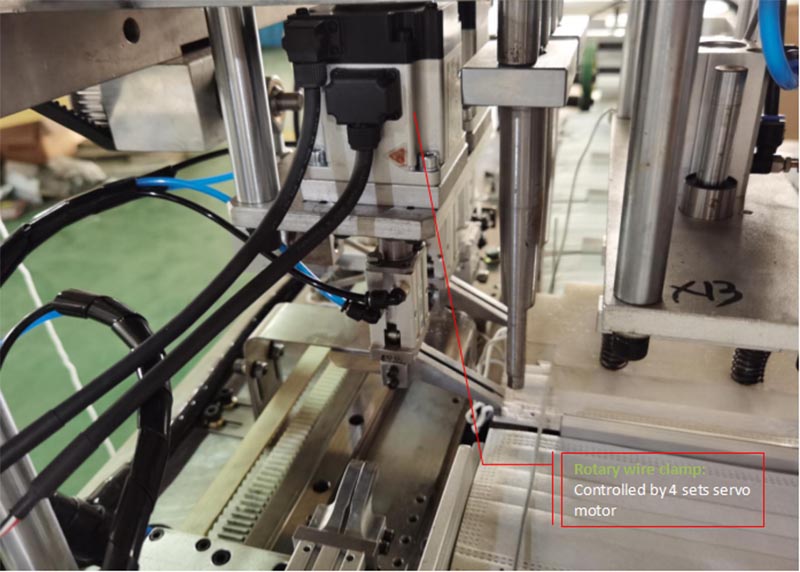

Main motor adopt servo motor: so totally 9 sets servo motor control the machine.

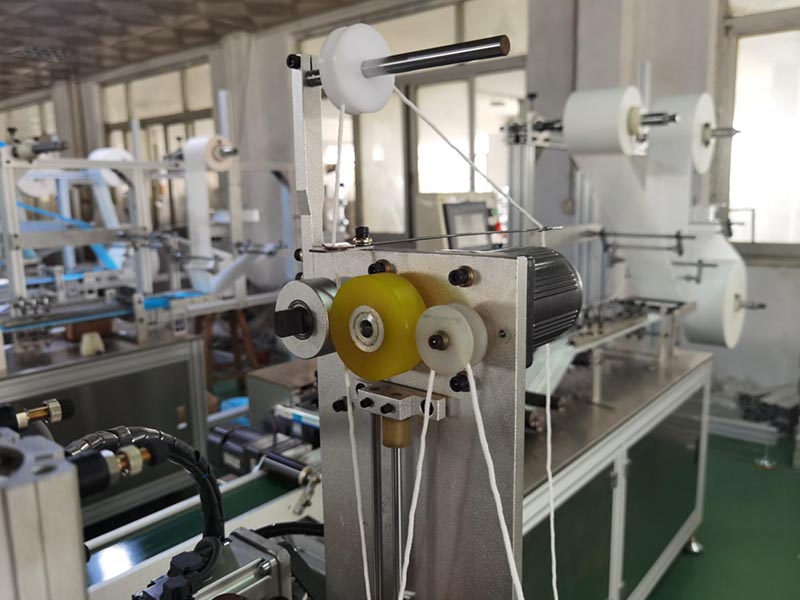

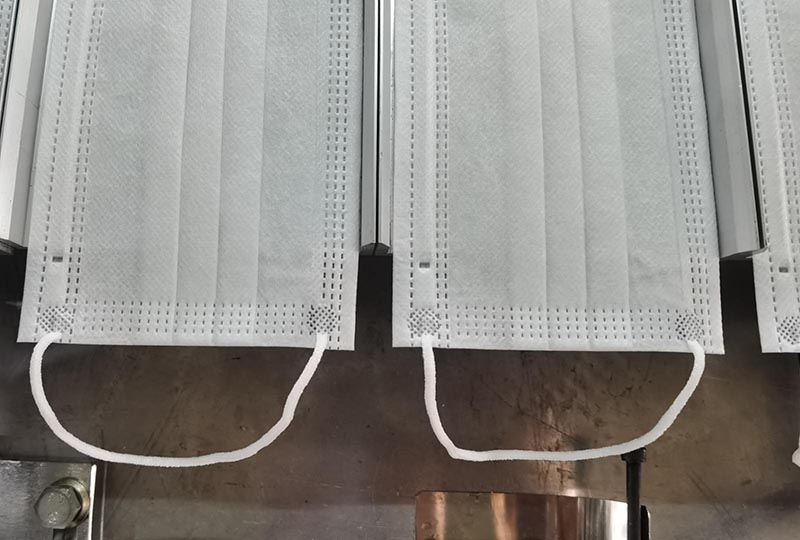

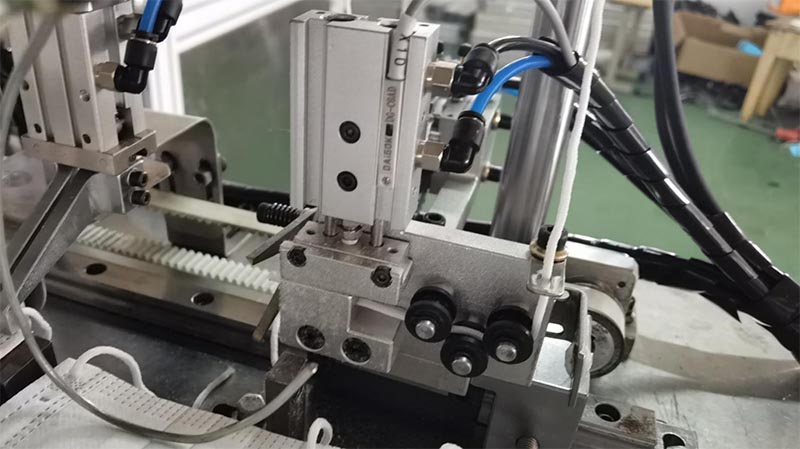

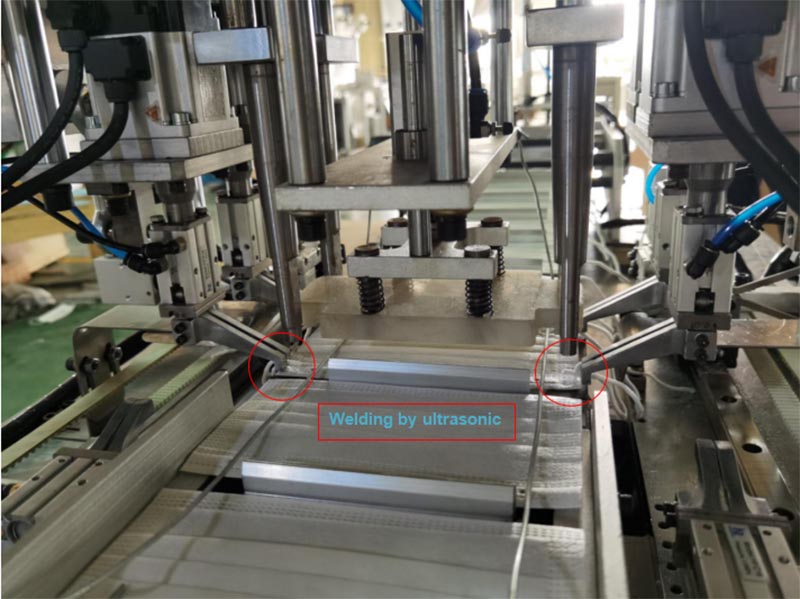

Feeding the rubber band: size 3mm
