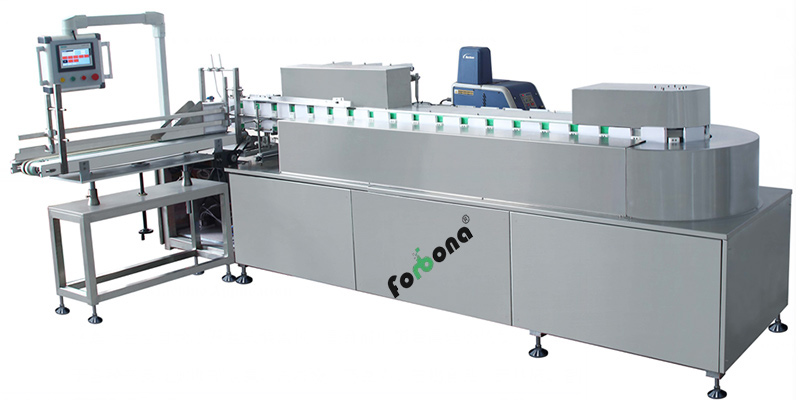

HT-ZH100L Automatic Vertical Motion Cartoning Machine

HT-ZH100L Automatic Vertical Motion Cartoning Machine

MACHINE APPLICATION :

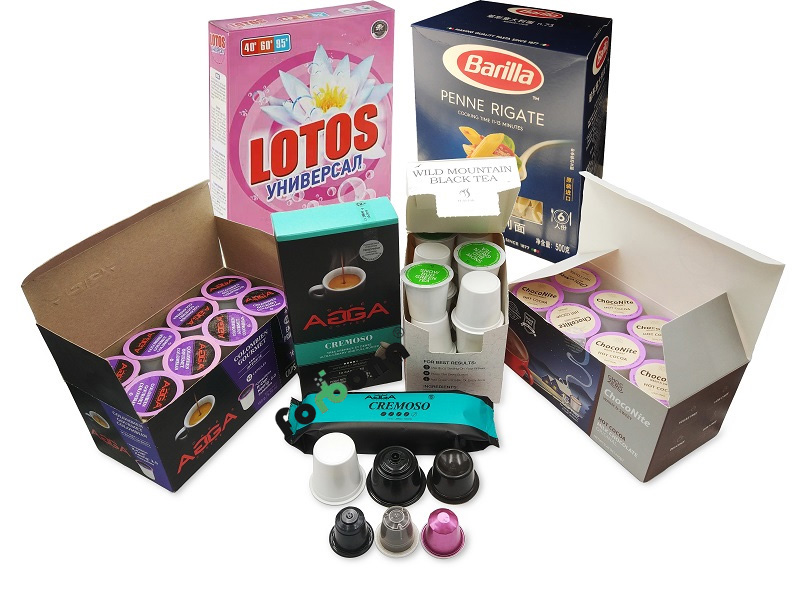

This machine is a fully automatic vertical type opening up cartoning machine. It is applicable for coffee products, salt, pasta, wash powder, chocolate, pet food, penicillin bottle, perfume bottle, etc. It is widely used in the industries of cosmetics, pharmacy, food and agricultural chemicals. This cartoning machine is able to encase irregular bulk items that horizontal cartoning machine can not do. Combined with the world advanced technology and our company’s powerful design team, this machine has obtained many design patents. It is favored by domestic and foreign companies.

MACHINE TECHNICAL PARAMETERS :

MODEL HT-ZH100L
CAPACITY

20-50 cartons/minute

(Accord to clients’ box and products)

CARTON SIZE Min: 30×30×50mm
Max: 150×150×400mm
PAPER QUALITY OF CARTON 200-400 g/m³
POWER 3 phase  220/380v  50/60hz  3.5kw
AIR SUPPLY 0.5-0.7 Mpa
WEIGHT 800Kg
DIMENSION 2500mm×1000mm×1500mm

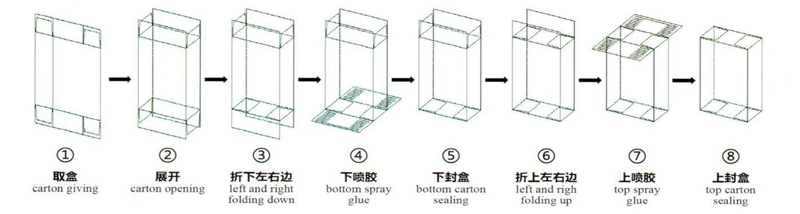

Flow Chart – Basic MC-200 Module :

CHARACTERISTICS :

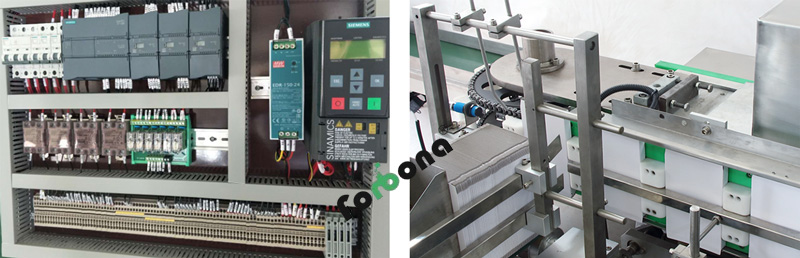

1、Servo/step motor, touch screen, PLC control system and man-machine interface display all adopt International famous brand.

2、Packing forms such as automatic feeding, box opening, boxing, box sealing, waste rejecting, etc. are adopted.

3、Easy operation that change of specifications does not need change of molds.

4、Automatically stop when machine is overload or the boxing is not in place.

5、Adopting high quality hot melt machine. (Optional)

Our company:

Certificate:
